Types and sizes of shipping containers — full reference

Reference8 min read

The container type and size directly affect how much cargo fits, how it is secured and what the shipment costs. Here is a clear reference to all the main containers — with dimensions, volume, weight and what each one is best for. Values follow the ISO standard (individual lines may vary by a few centimetres).

Standard dry containers

The most common type — a universal closed container for general cargo, boxes and pallets. They differ in length and height; a High Cube is ~30 cm taller than standard — more volume for the same weight.

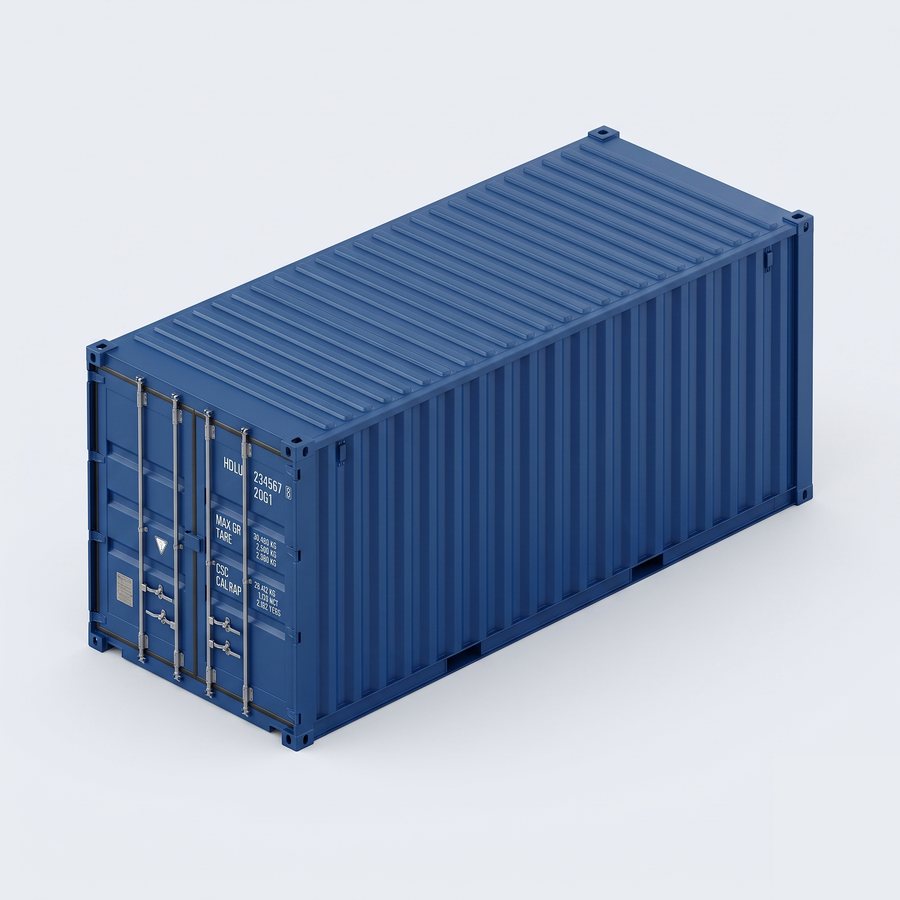

20′ Standard

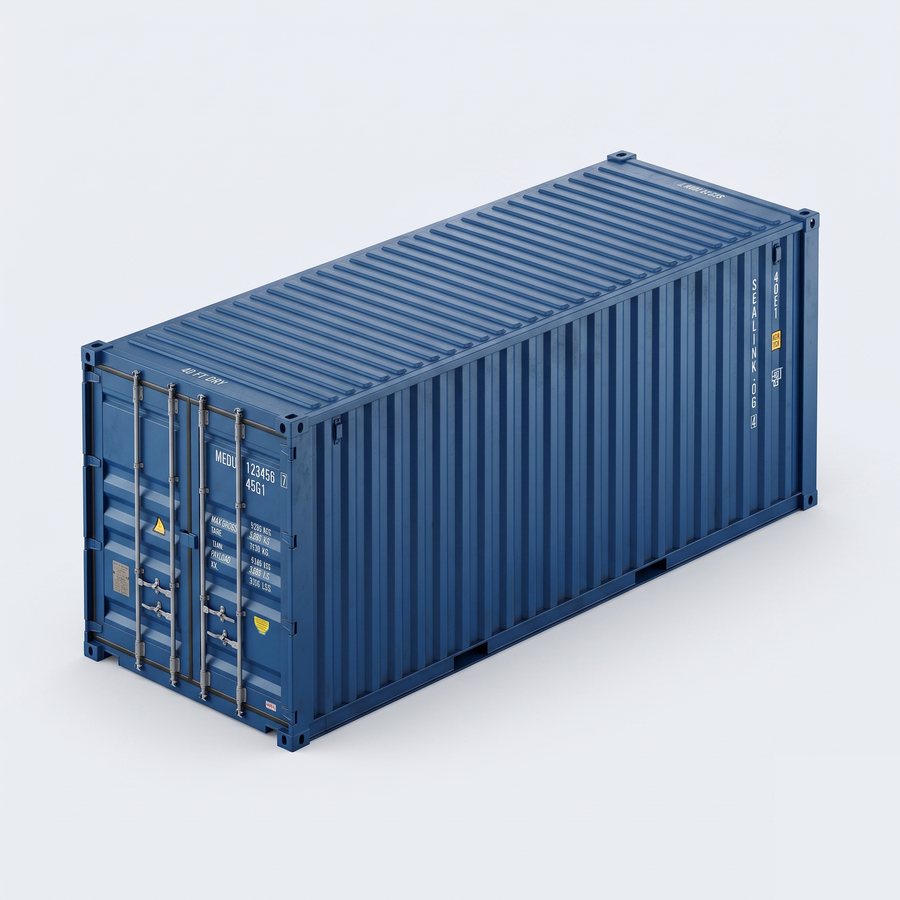

40′ Standard

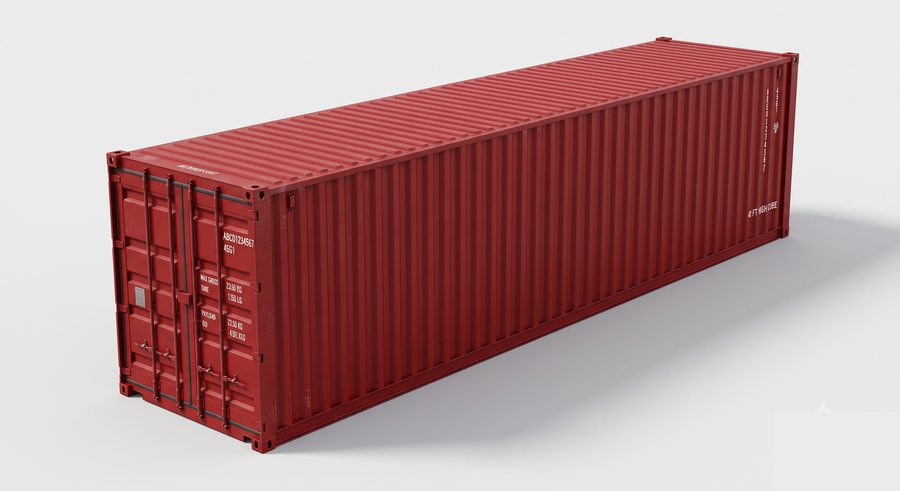

40′ High Cube

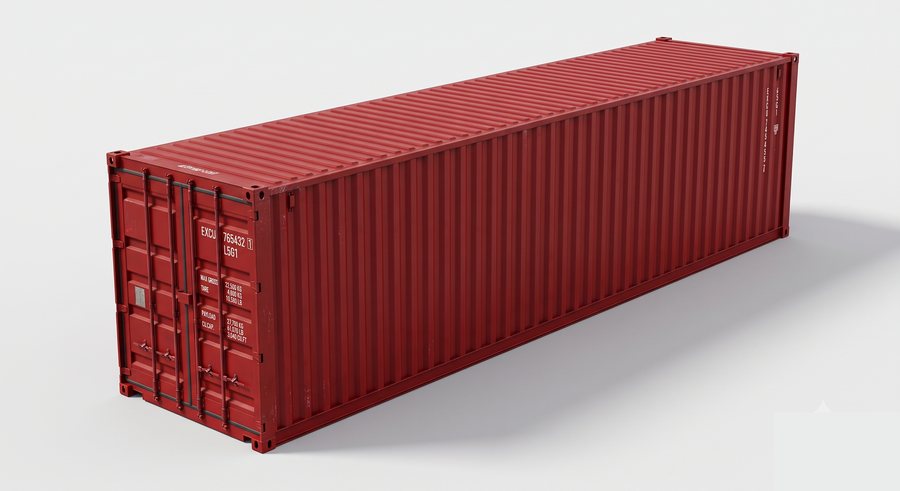

45′ High Cube

Type	External (L×W×H)	Internal (L×W×H)	Door (W×H)	Volume	Max payload
20′ Standard	6.06 × 2.44 × 2.59 m	5.90 × 2.35 × 2.39 m	2.34 × 2.28 m	33.2 m³	~28,200 kg
40′ Standard	12.19 × 2.44 × 2.59 m	12.03 × 2.35 × 2.39 m	2.34 × 2.28 m	67.7 m³	~26,700 kg
40′ High Cube	12.19 × 2.44 × 2.90 m	12.03 × 2.35 × 2.69 m	2.34 × 2.58 m	76.3 m³	~26,500 kg
45′ High Cube	13.72 × 2.44 × 2.90 m	13.56 × 2.35 × 2.69 m	2.34 × 2.58 m	86.0 m³	~27,600 kg

Special containers

When cargo does not fit a standard box — by size, temperature or nature — a specialised container is used.

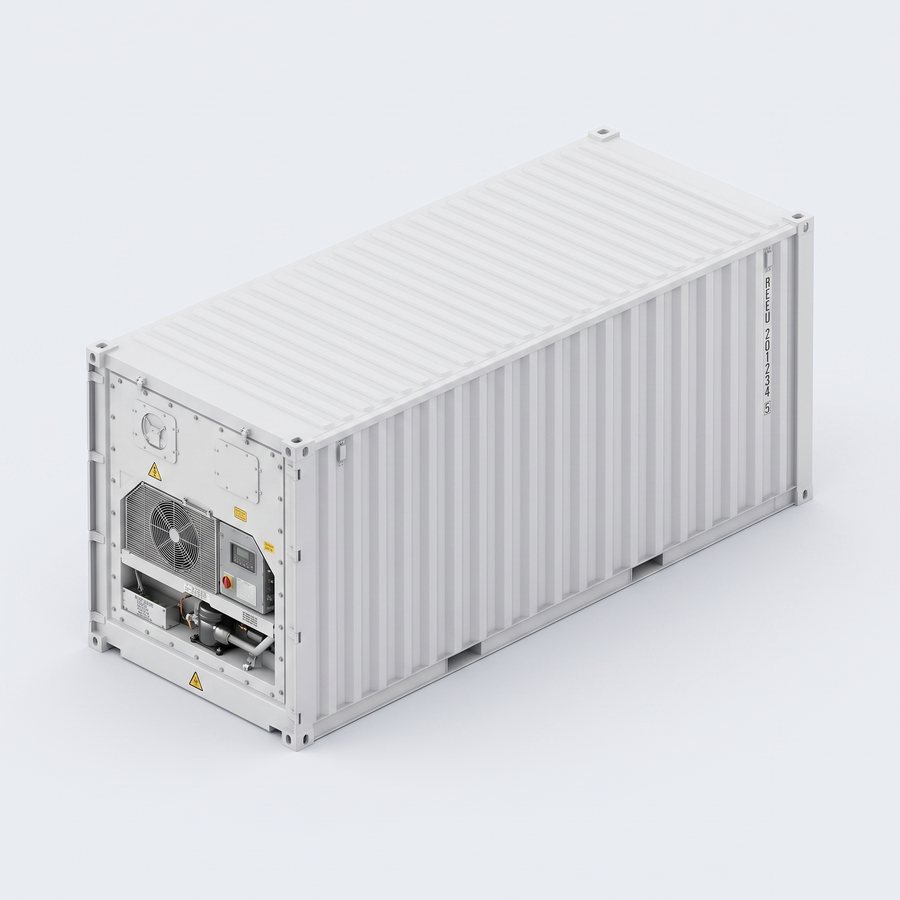

Reefer

Refrigerated

Perishable and temperature-sensitive cargo: food, fruit, pharma.

−30…+30 °C · 20′ ≈28 m³ · 40′HC ≈67 m³

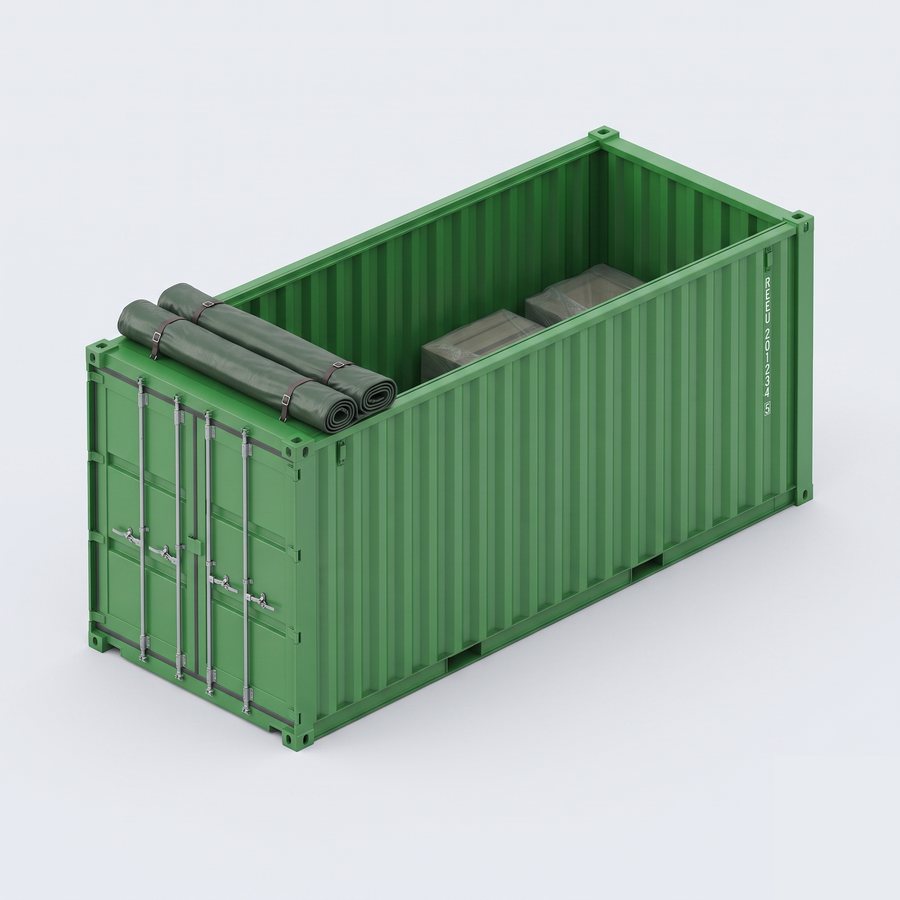

Open Top

Open roof

Oversized, tall cargo, machinery — loaded by crane from above.

20′ ≈32 m³ · 40′ ≈66 m³

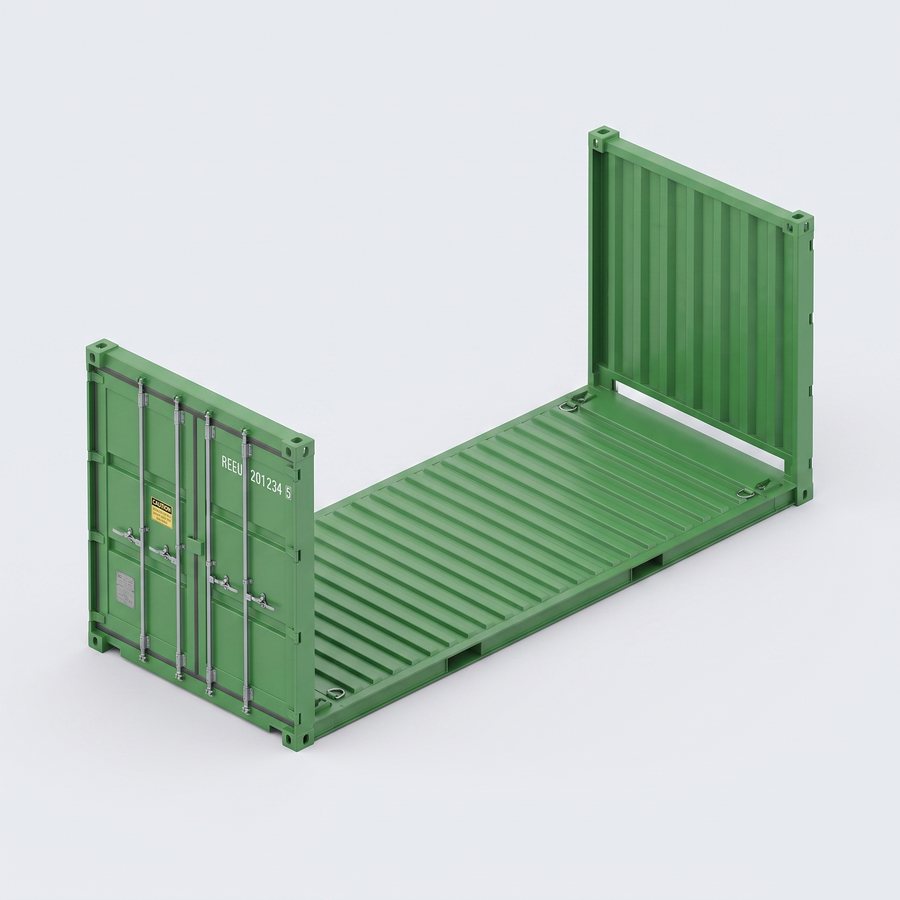

Flat Rack

Deck with end walls

Heavy and oversized machinery, vehicles, timber, pipes, construction materials.

up to ~40,000 kg (40′)

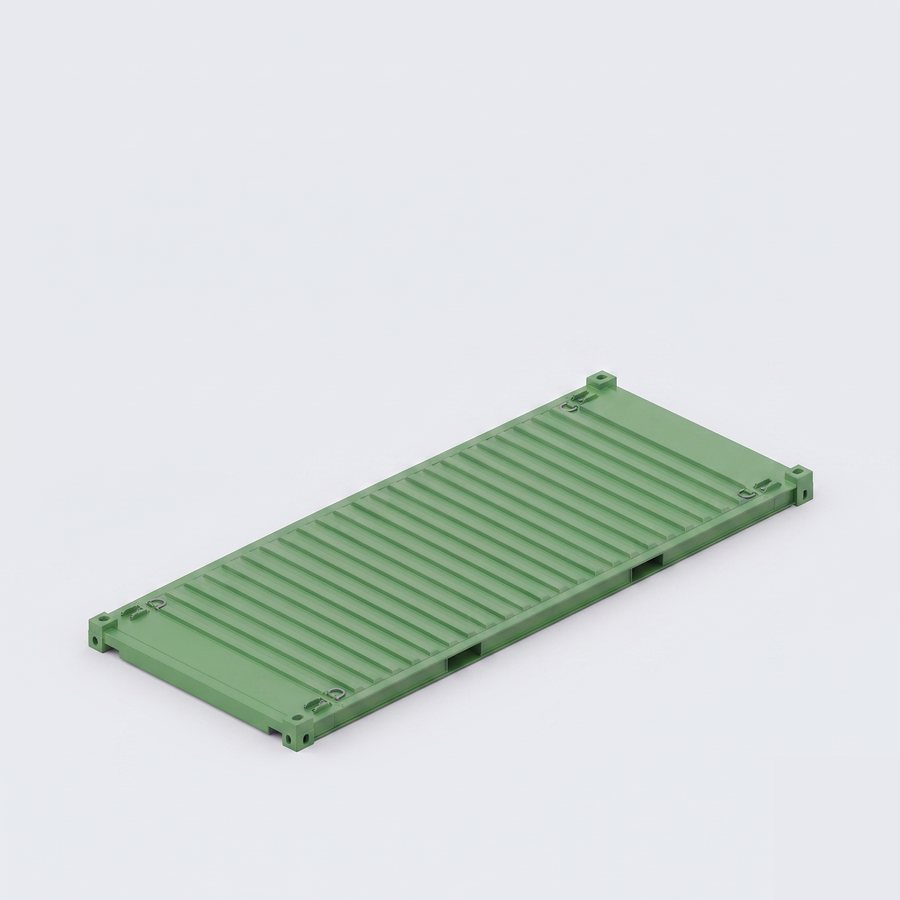

Platform

Flat bed

Super-heavy and project cargo: steel coils, transformers.

up to ~40,000 kg (40′)

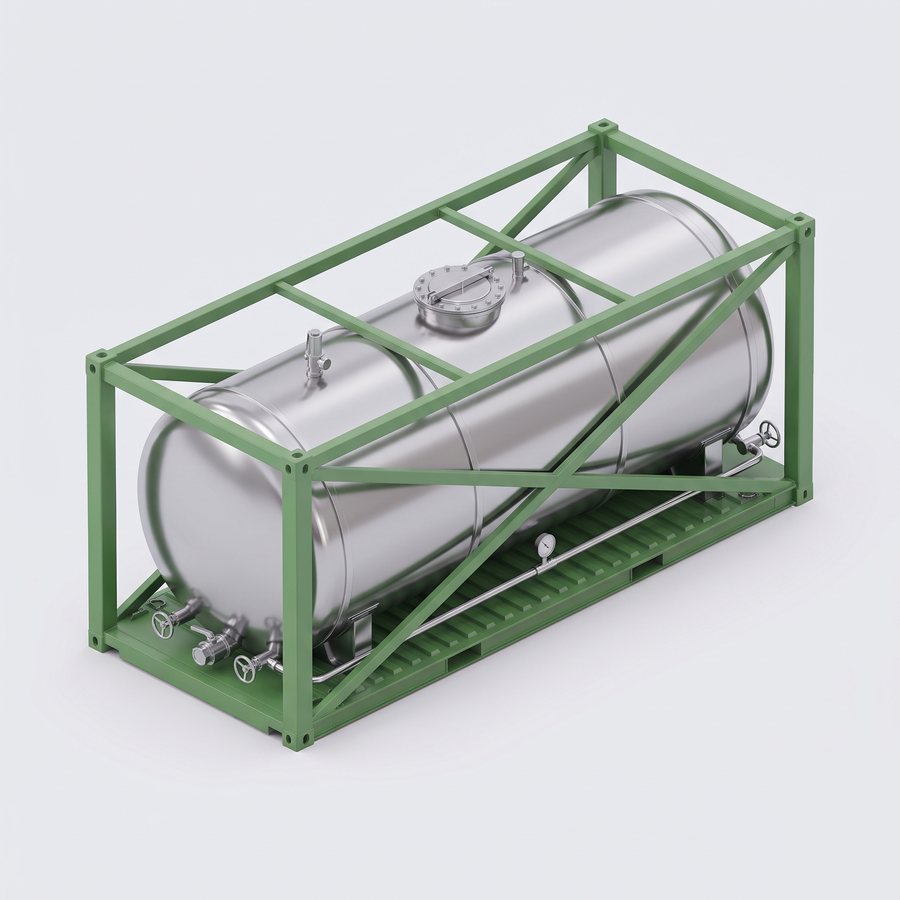

Tank

Tank container

Liquid and dangerous goods: chemicals, food oils, gases, powders. Stainless, insulated, pressure-rated.

21,000–26,000 L

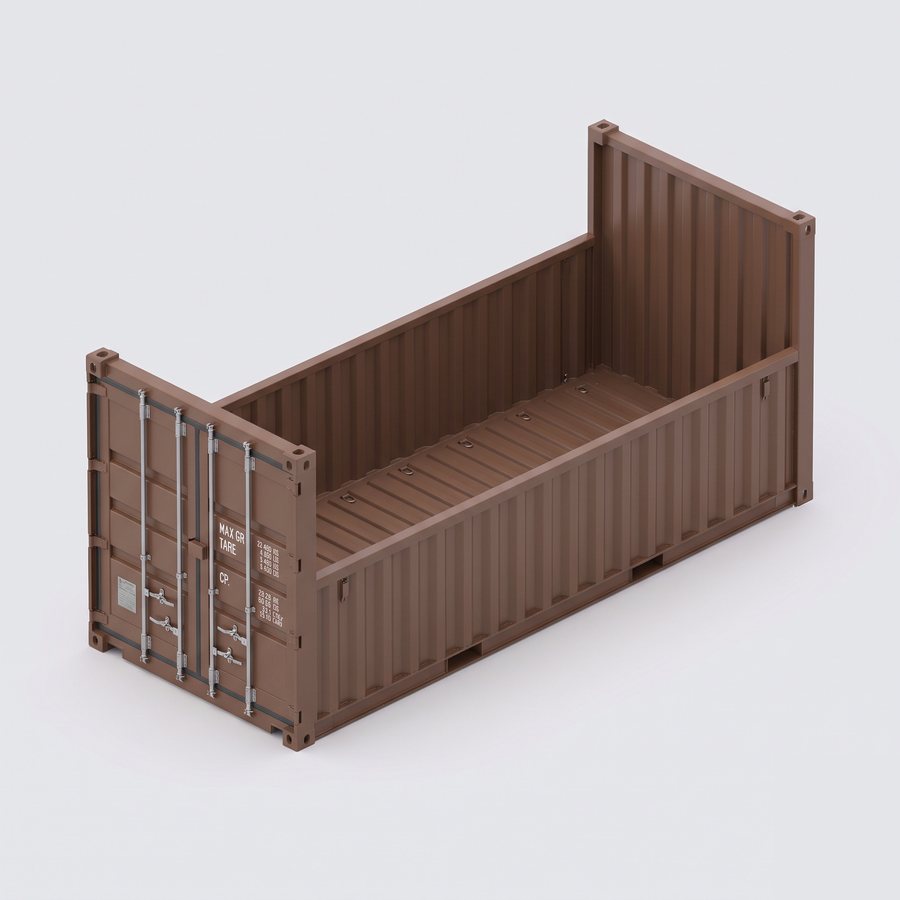

Half Height

Half the height

Heavy bulk: ore, coal, stone, scrap metal. Low, easy top loading.

Height ≈1.2–1.3 m

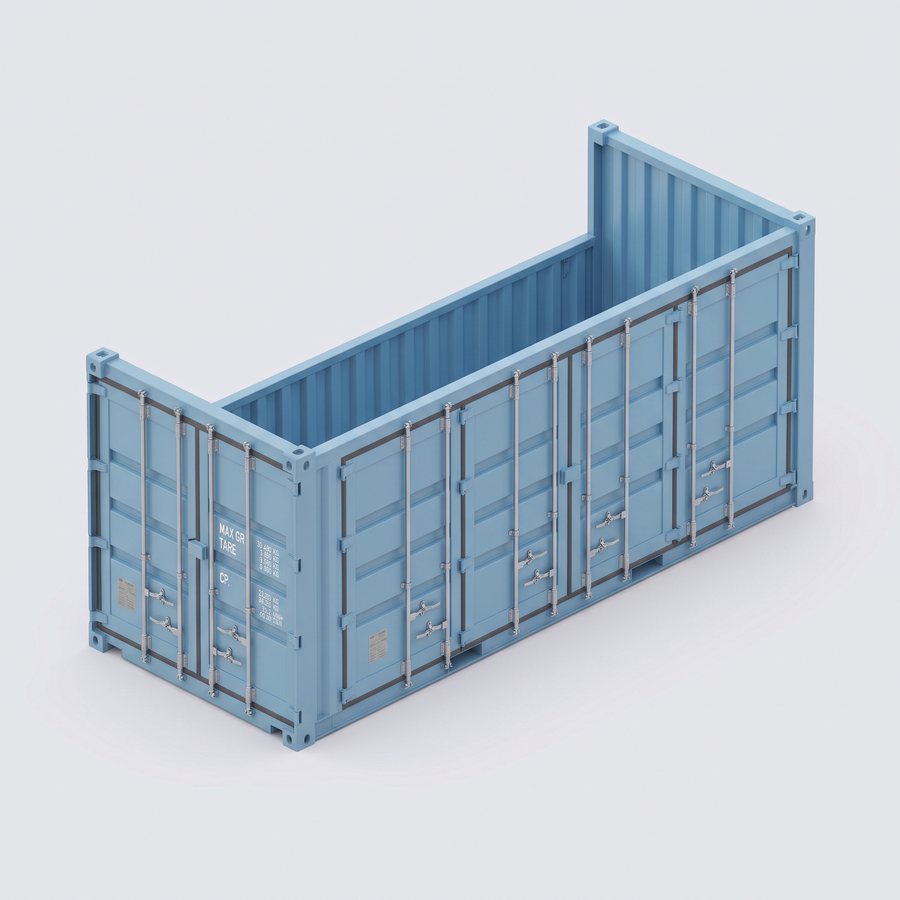

Side-Open

Side doors

Doors along the whole long side — easy loading of pallets and cargo hard to move through the end.

Side loading

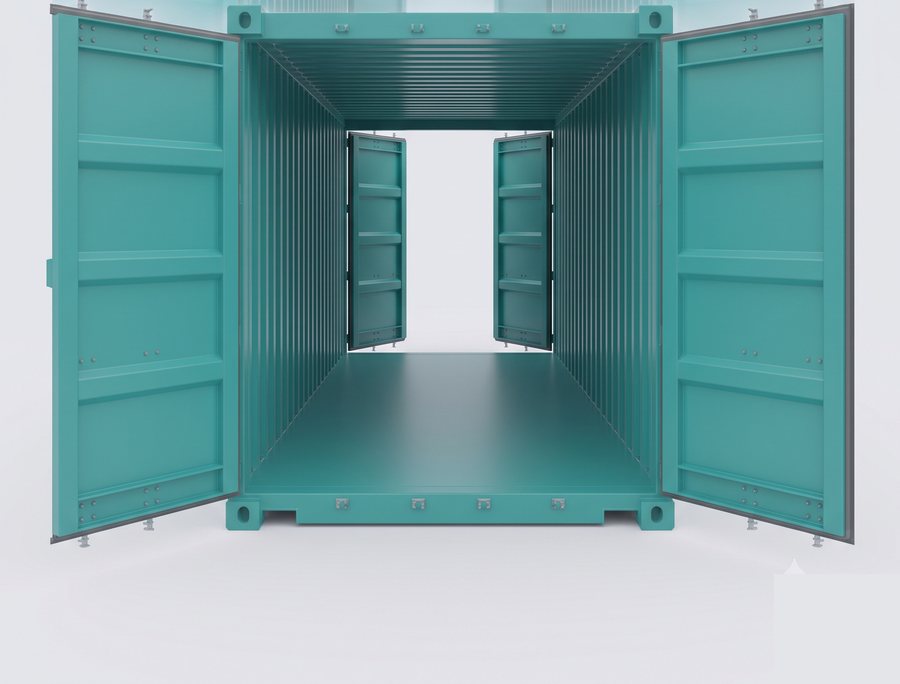

Tunnel

Doors on both ends

Doors at both ends — through loading/unloading, cross-docking, warehouse flexibility.

Doors 2×

How many pallets fit

Guideline capacity in a single tier (approx.).

Container	Euro pallets (1200×800)	Standard (1200×1000)
20′ Standard	11	9–10
40′ Standard	24	20–21
40′ High Cube	25	21–22
45′ High Cube	33	26–27

Quick comparison — which type for which cargo

Type	Typical cargo
20′ / 40′ Standard	General cargo, boxes, pallets
High Cube	Light bulky cargo — more volume
Reefer	Temperature-sensitive, perishable cargo
Open Top / Flat Rack	Oversized, machinery, project cargo
Tank	Liquids, gases, dangerous goods
Side-Open / Tunnel	Easy loading, pallets, cross-docking
